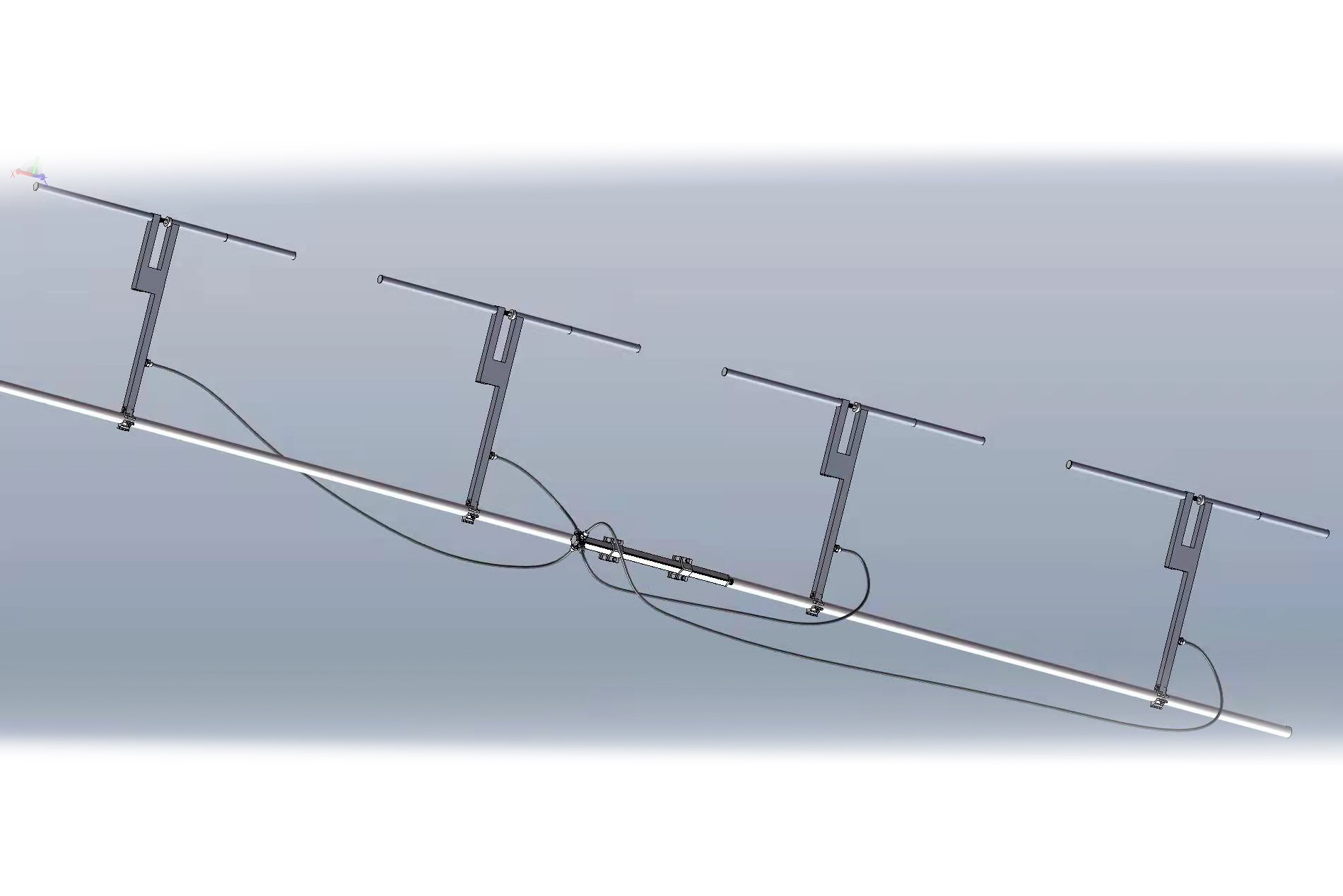

3KW 4 Way Dipole antenna array (ANT-D3000)

This is a 4-antenna dipole antenna array with a power capacity of up to 3kW.


EMAIL

Center frequency: segment selection   92MHz     98MHz    104MHz

Bandwidth: 8MHz

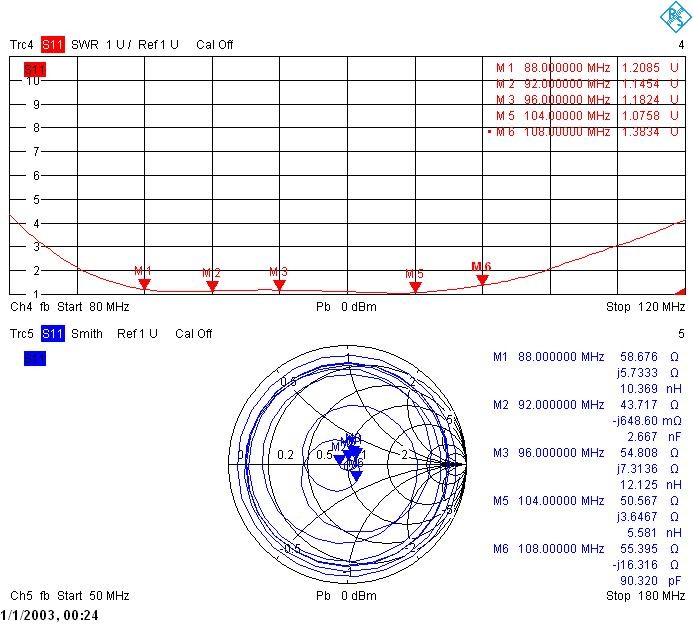

Input maximum standing wave ratio: ≤1.1

RF input power: ≤ 3500 W

RF input impedance: 50Ω

RF input connector:  L29 DIN

Net Size:80 x 9000 x 800mm (without measuring handles and protrusions),

Package Weight:22KG
