800W Dipole antenna (ANT-D800)

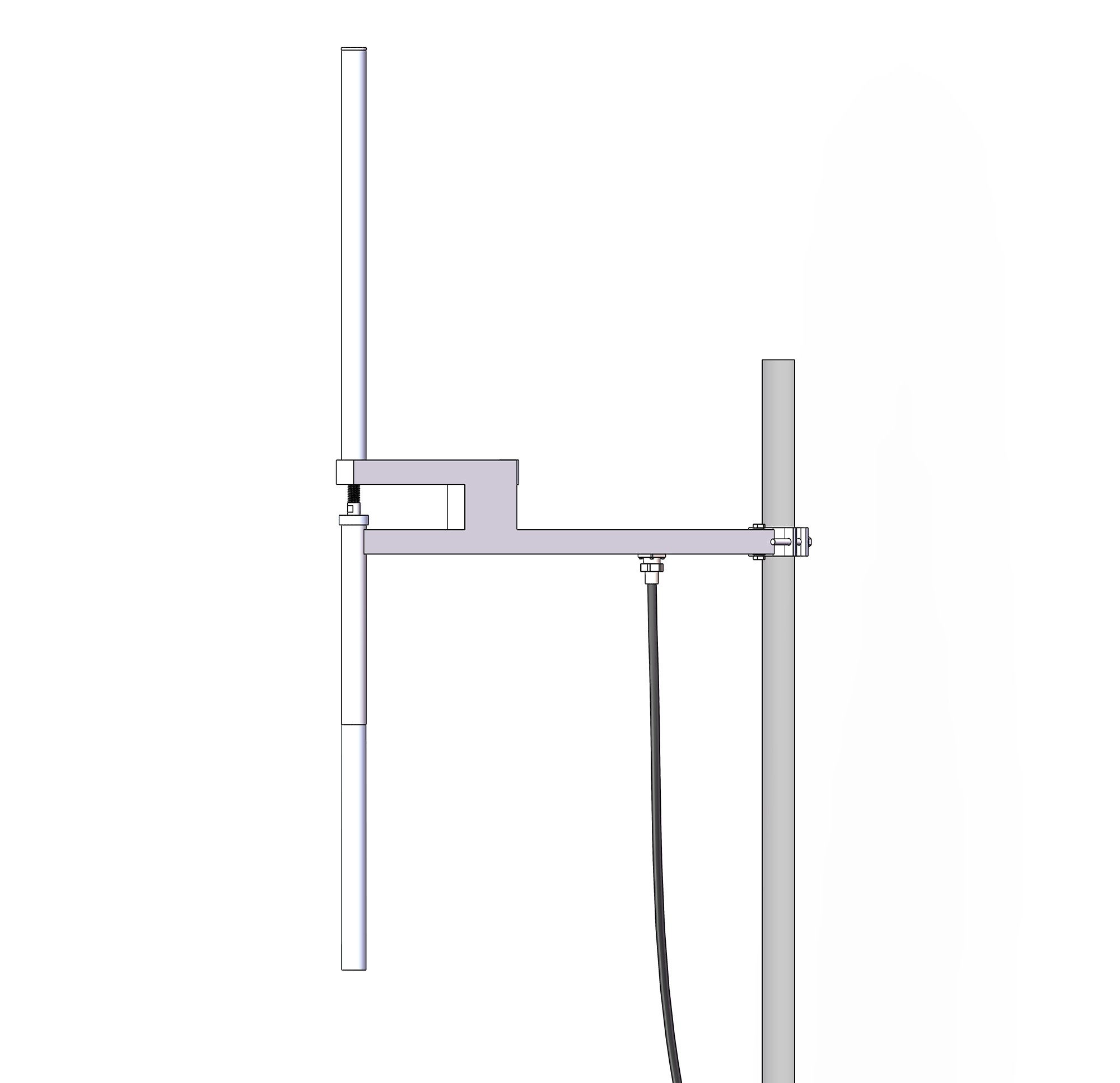

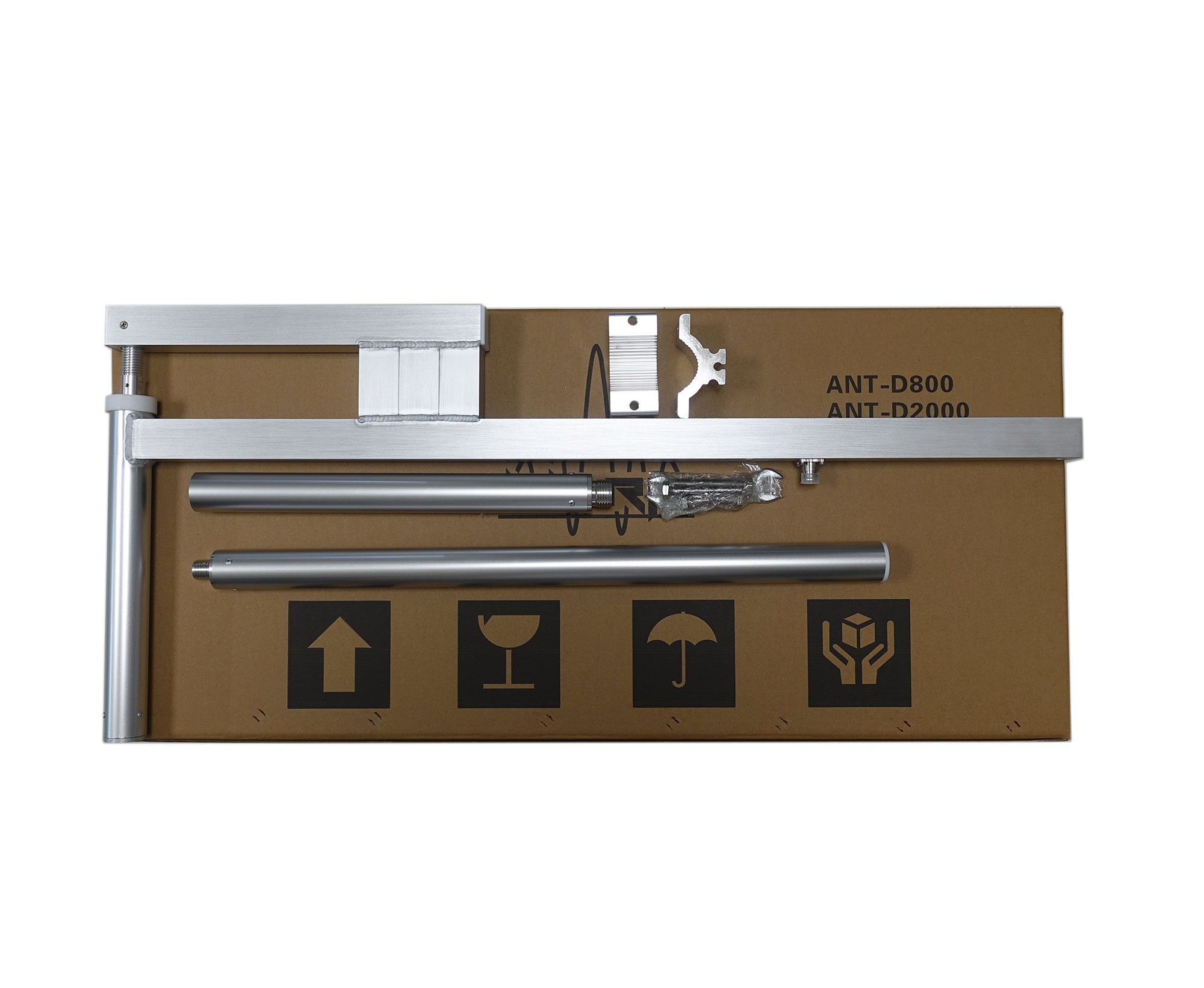

This is an omni-directional FM broadcast dipole antenna, which is made of all aluminum structure, light and firm.

EMAIL

Model:Dipole antenna (ANT-D800)

Frequency range: 87.5MHz ~ 108MHz

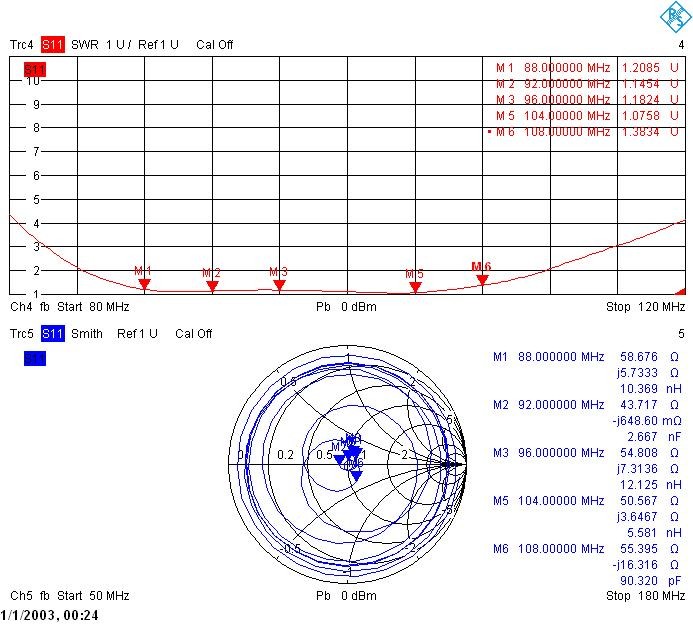

Input maximum standing wave ratio: ≤1.25

RF input power: ≤ 800 W

RF input impedance: 50Ω

RF input connector: L16    N

Gain: 2dB

Net Size:250 x 50 x 800mm (without measuring handles and protrusions),

Package Weight:4KG
