3KW 2Way Dipole antenna array (ANT-D3000E)

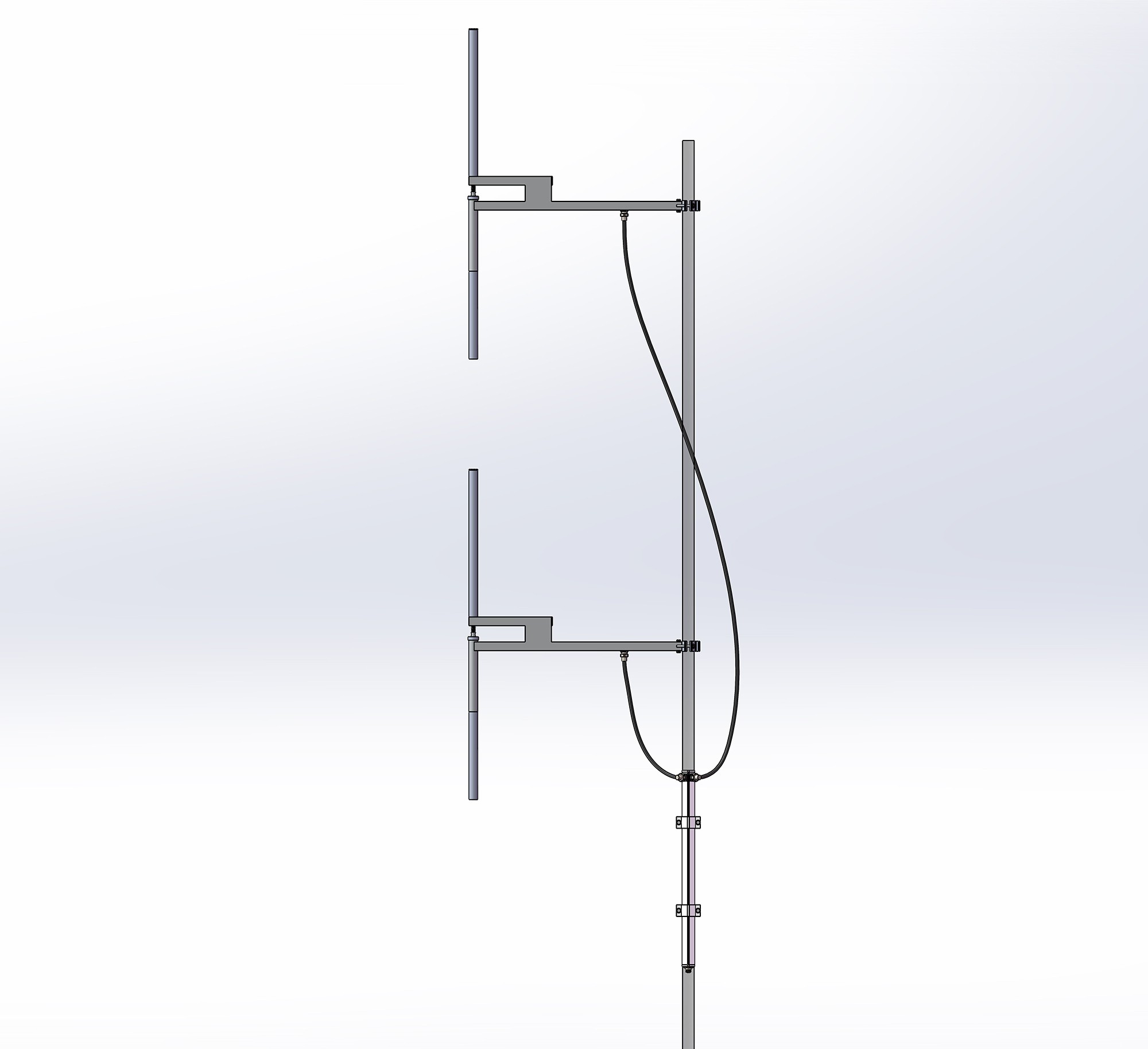

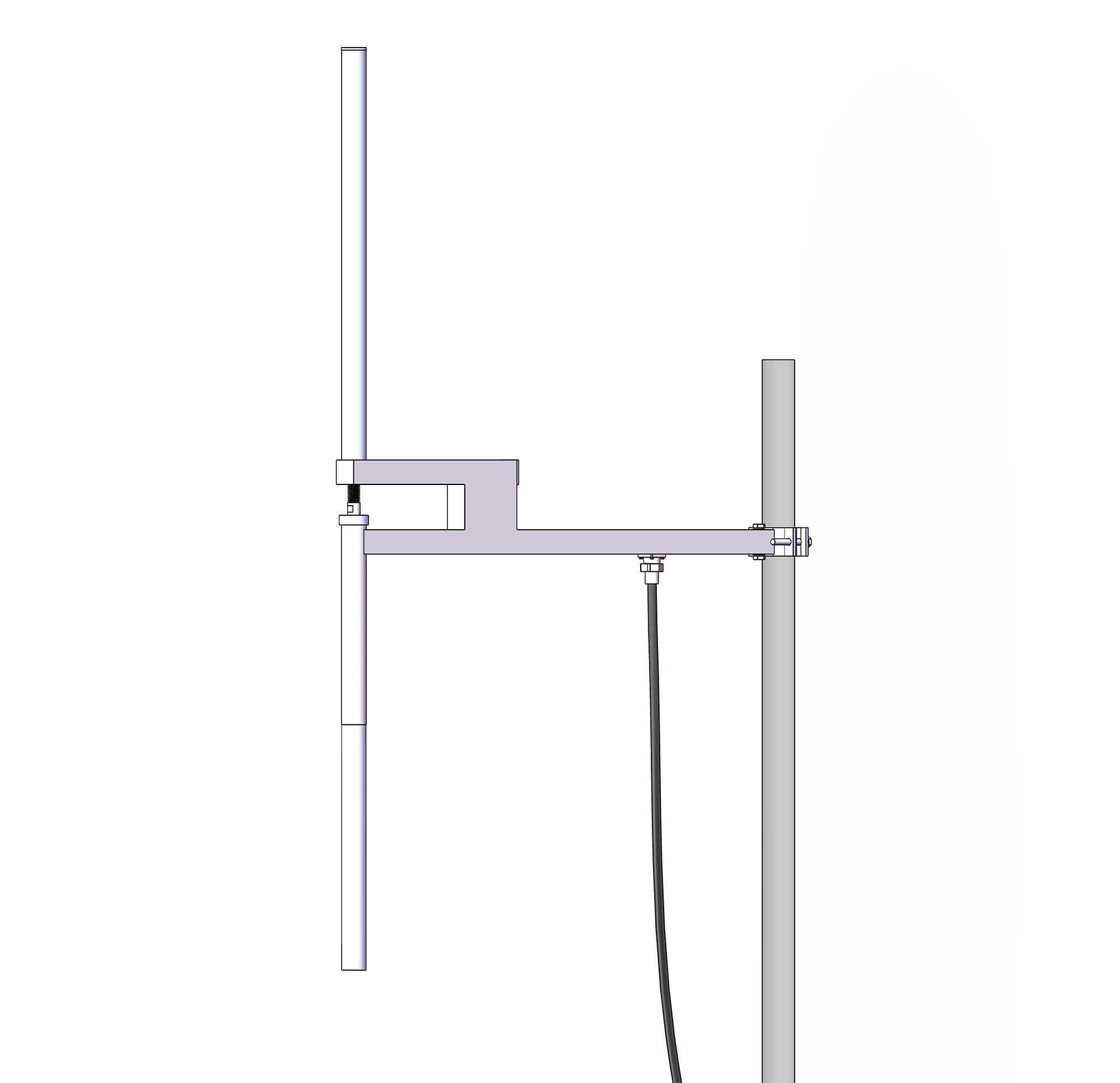

This is a 2-antenna dipole antenna array with a power capacity of up to 3kW.


Center frequency:    98MHz

Bandwidth: 20MHz

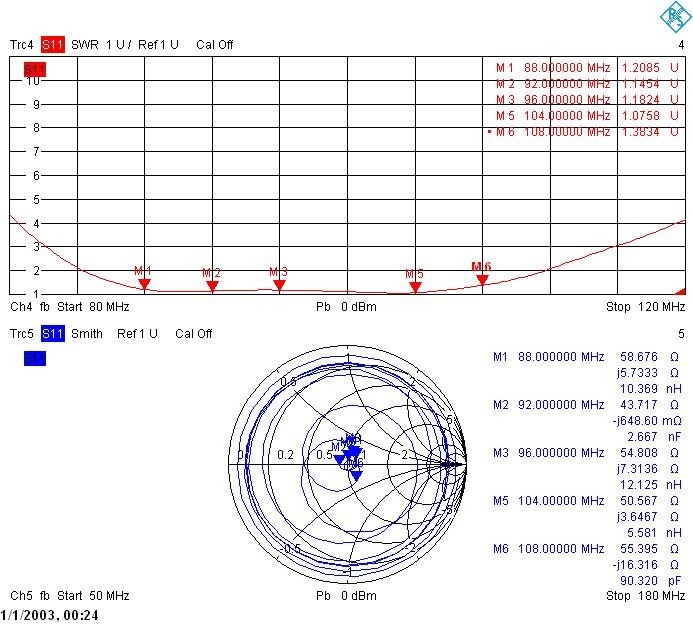

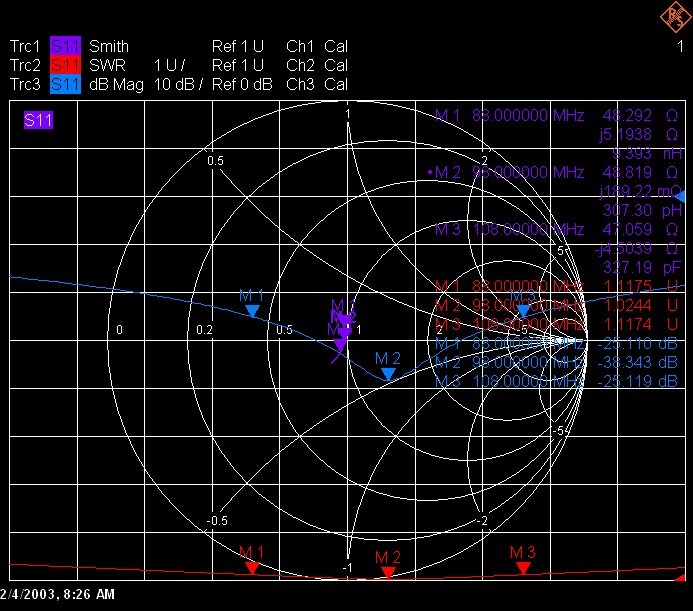

Input maximum standing wave ratio: ≤1.15

RF input power: ≤ 3000 W

RF input impedance: 50Ω

RF input connector:  L29 DIN

Net Size:80 x 9000 x 800mm (without measuring handles and protrusions),

Package Weight:12KG
