5KW 4 Way Dipole antenna array (ANT-D5000)

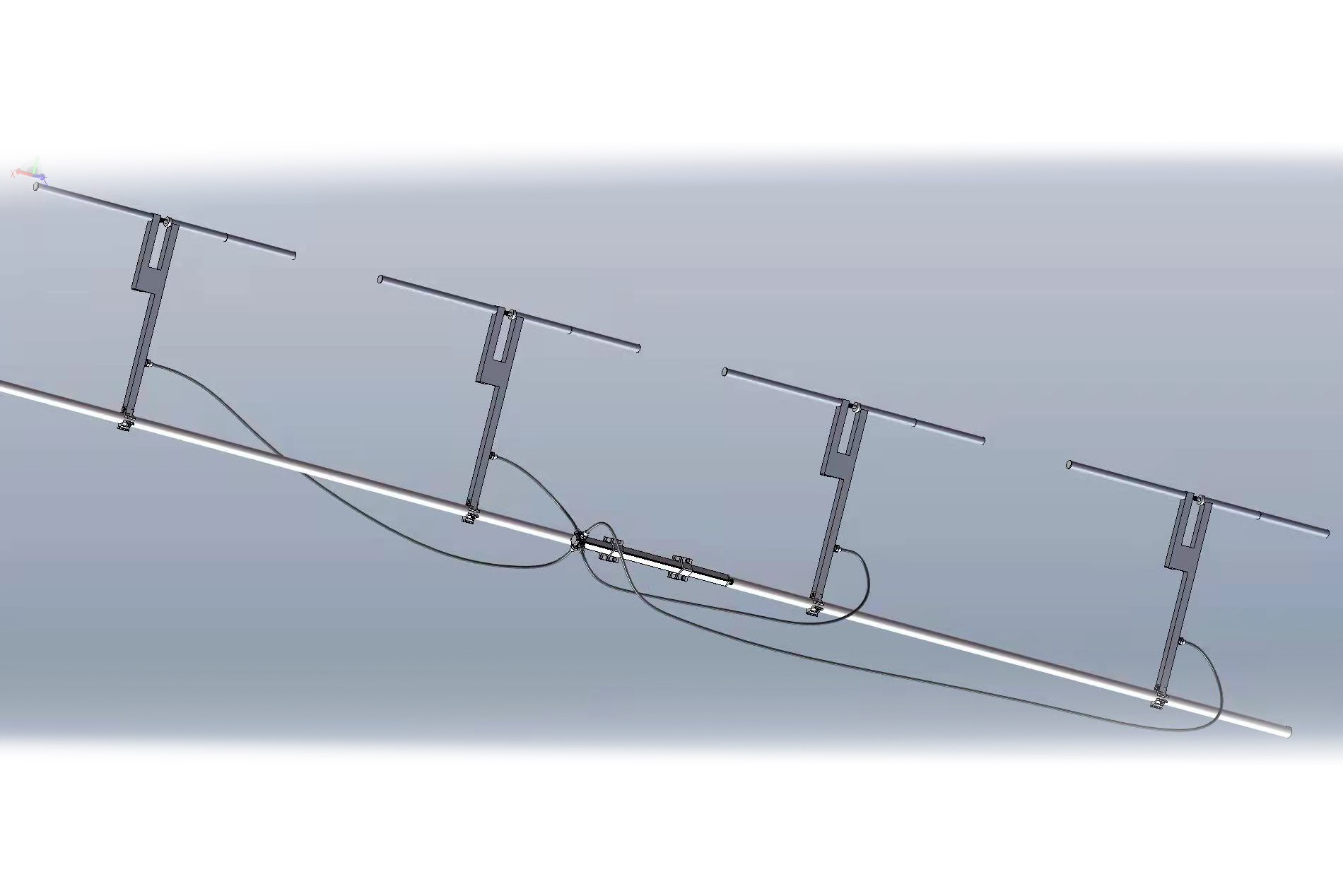

This is a 4-antenna dipole antenna array with a power capacity of up to 5kW.


EMAIL

Center frequency: segment selection   92MHz     98MHz    104MHz

Bandwidth: 8MHz

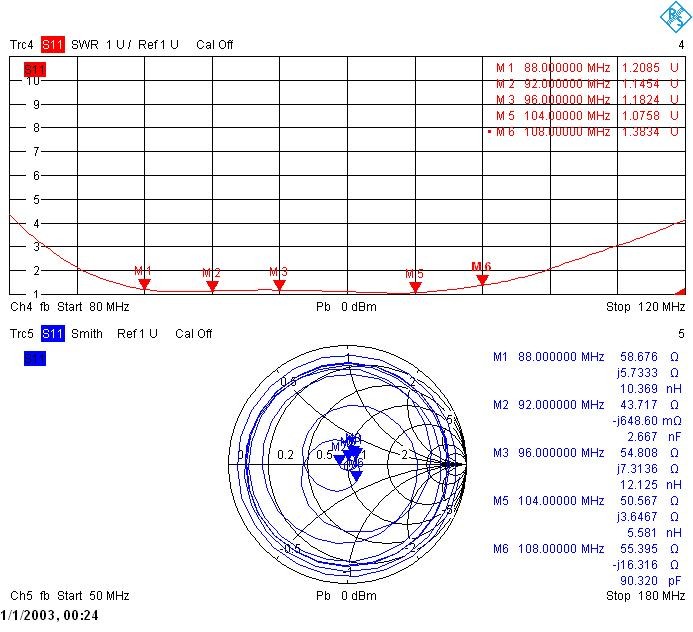

Input maximum standing wave ratio: ≤1.1

RF input power: ≤ 5000 W

RF input impedance: 50Ω

RF input connector:  EIA 7/8 (IF45)

Net Size:80 x 9000 x 800mm (without measuring handles and protrusions),

Package Weight:23KG
