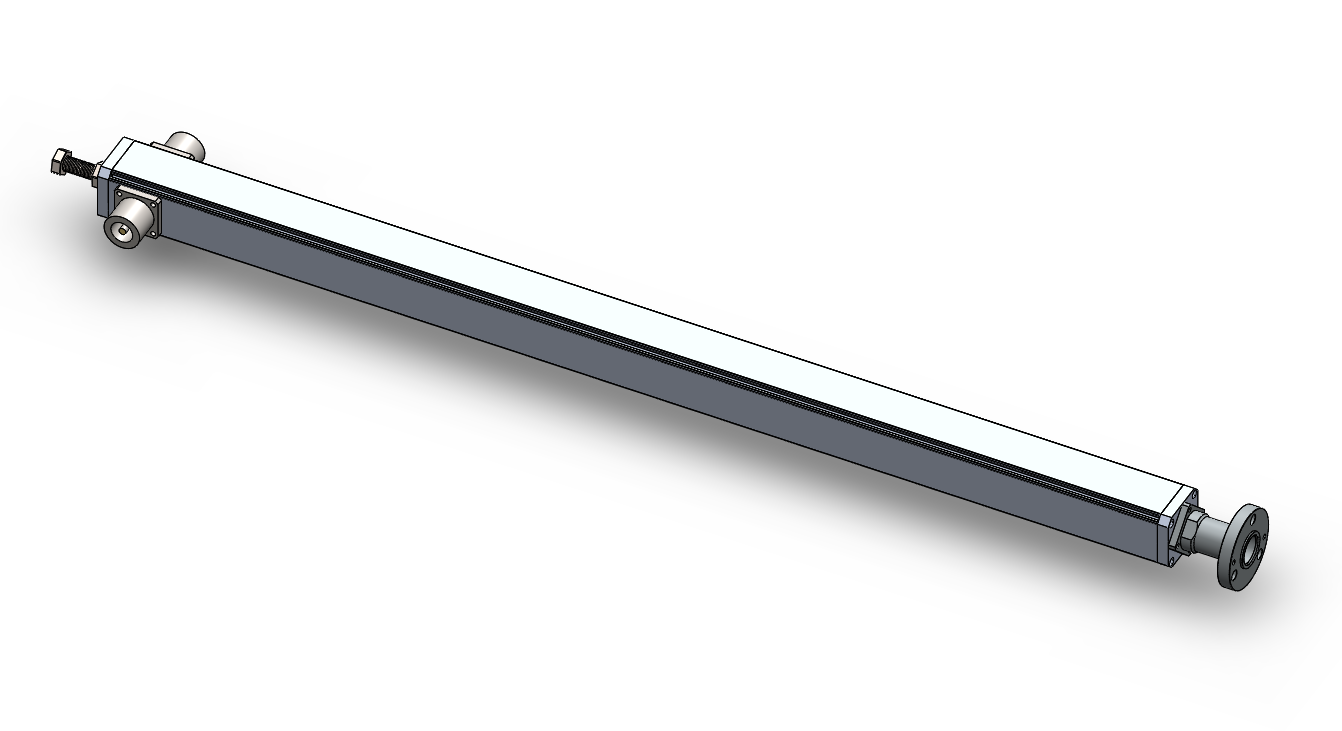

5KW Splitters 2 way (SP5KW-2WAY)

This is a power divider that can be combined into two antenna arrays.
Power capacity up to 5kw.


Center frequency:   98MHz

Bandwidth: 20MHz

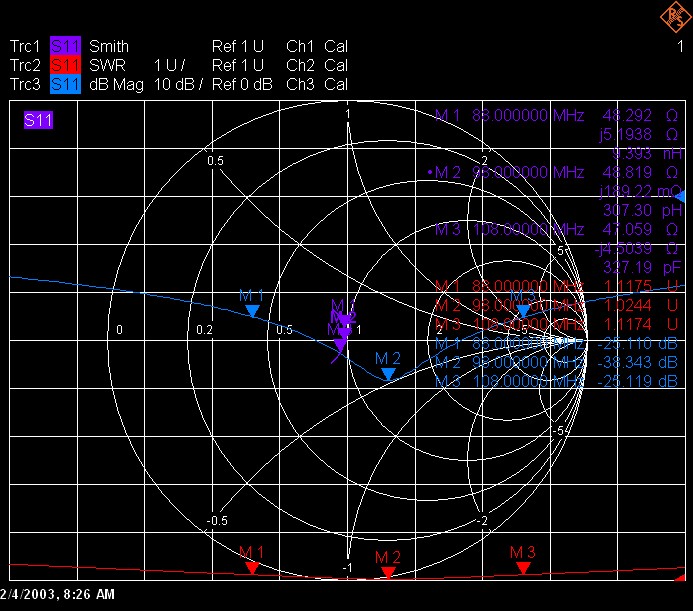

Input maximum standing wave ratio: ≤1.1

RF input power: ≤ 5000 W

RF input impedance: 50Ω

RF input connector: EIA 7/8 (IF45)

RF output connector: L29

Net Size:50 x 50 x 800mm (without measuring handles and protrusions),

Package Weight:5KG
