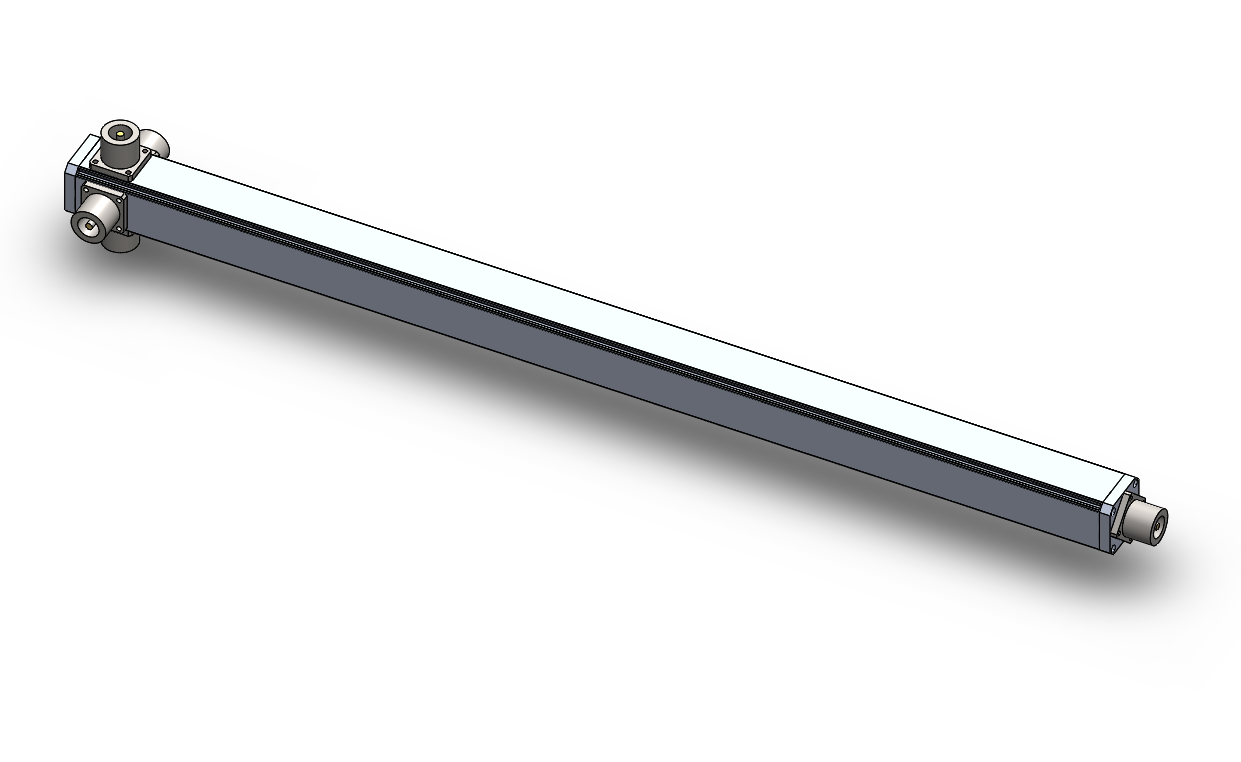

3KW Splitters 4 way (SP3KW-4WAY)

This is a power divider that can be combined into four antenna arrays.
Power capacity up to 3kw.


Center frequency: segment selection   92MHz     98MHz    104MHz

Bandwidth: 8MHz

Input maximum standing wave ratio: ≤1.1

RF input power: ≤ 3000 W

RF input impedance: 50Ω

RF input connector:  L29

RF output connector: L29

Net Size:50 x 50 x 800mm (without measuring handles and protrusions),

Package Weight:5KG
