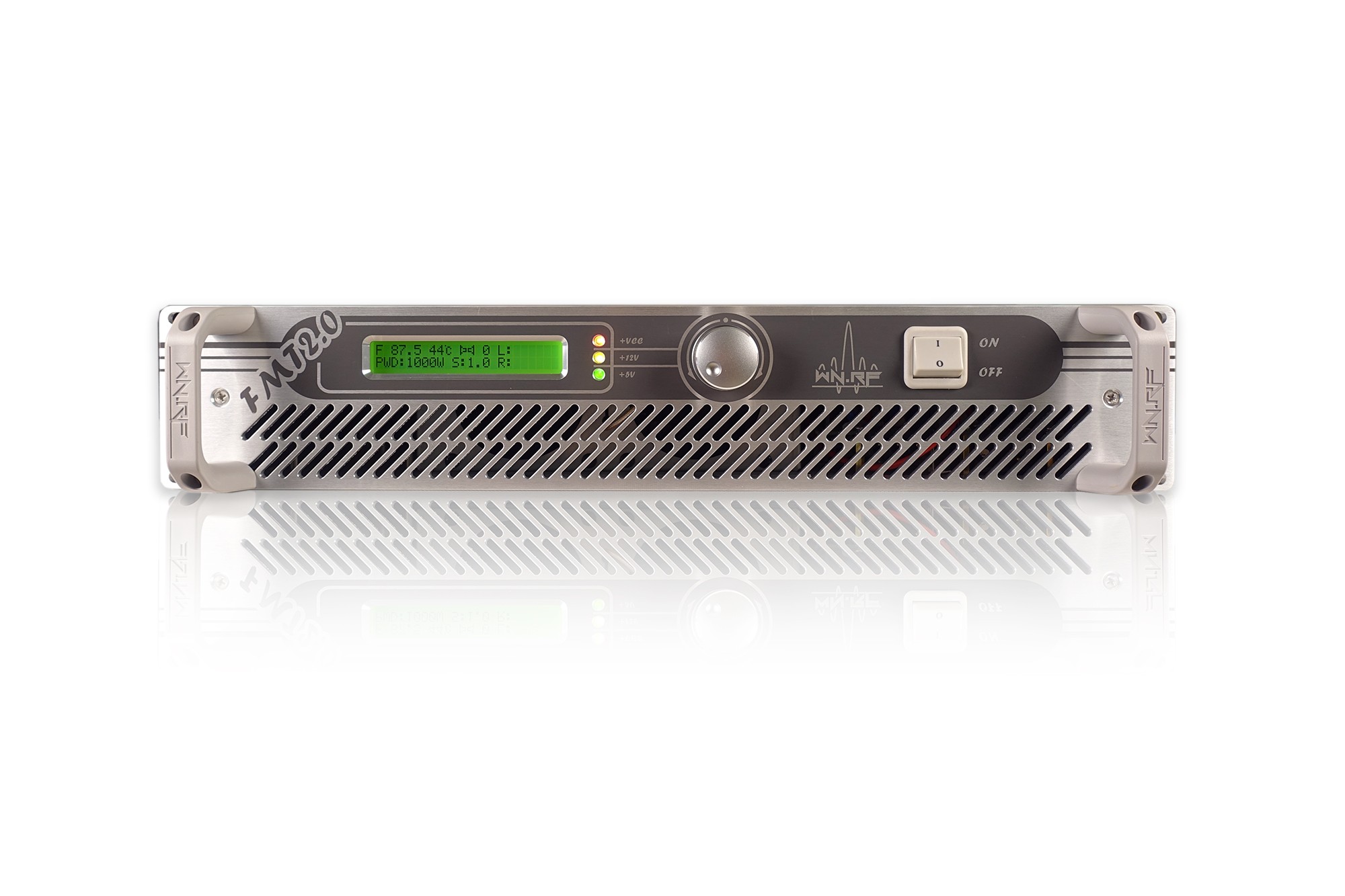

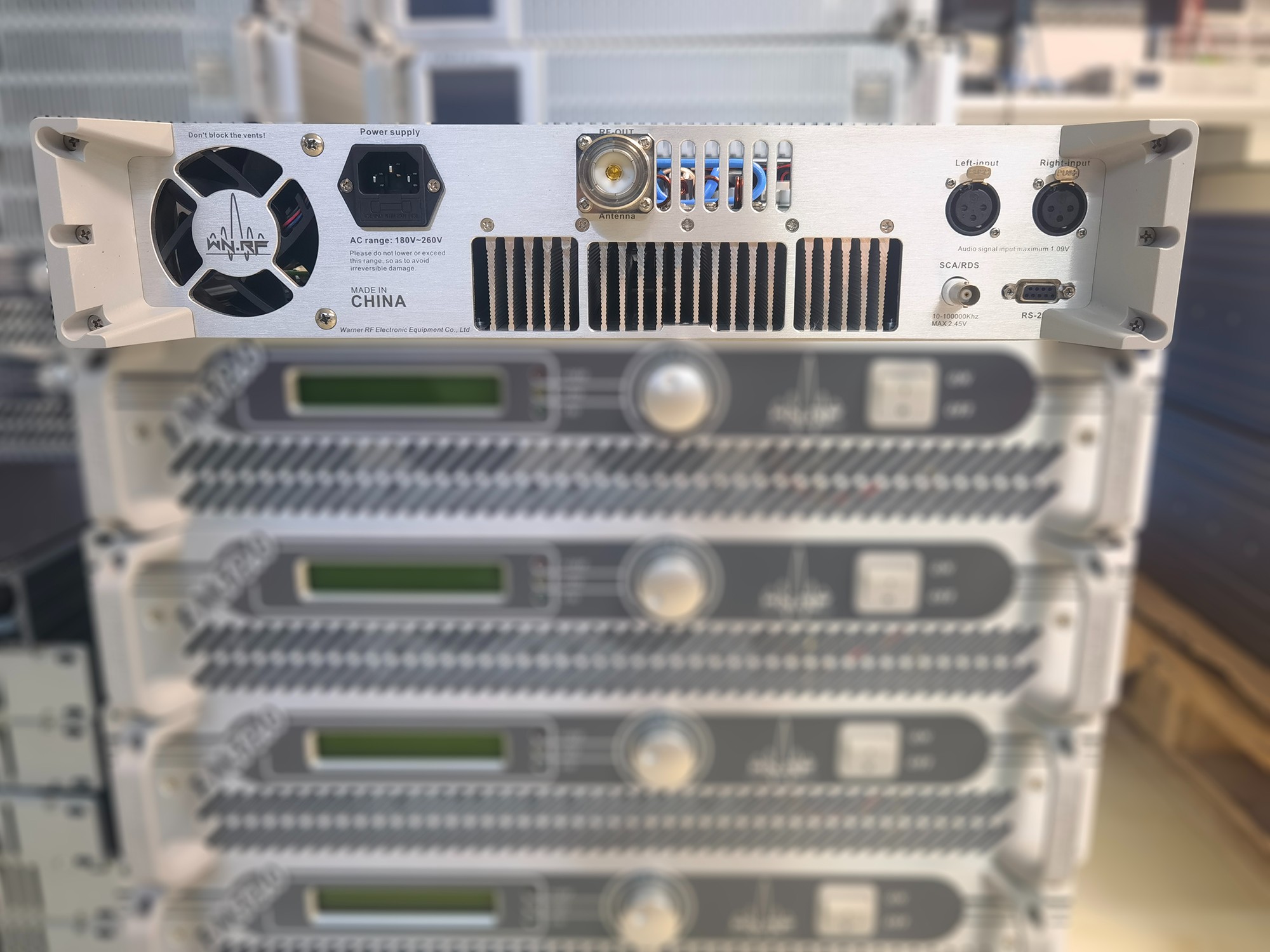

1000W cheap FM Broadcast Transmitter (FMT2.0-1000)

2U 19-inch all-aluminum standard chassis. Character display screen, PLL phase-locked loop frequency modulation technology, the final power amplifier adopts LDMOS transistor with high standing wave ratio.

EMAIL
Please choose a shipping area



     Overview

    The transmitter adopts a low-cost design concept, integrating the exciter and power amplifier, output filter, switching power supply, etc. in a 2U high 19-inch standard chassis.


     Functional features

l2U 19-inch thick aluminum alloy case, which is not only sturdy but also has good heat dissipation.

lPrecise PLL frequency generation system to ensure the frequency does not drift within at least 10 years.

lExcellent power AGC balance control system, the power output can be adjusted from 0 to full power, and has automatic gain power control to maintain the output power within a set range without drifting.

lSupport external input modulation RDS or SCA signal.

lEquipped with RS232 communication interface, users can control all operations through the transmitter communication protocol.

lRF amplifier uses  LDMOS transistor , making it able to withstand severe load mismatch of more than 65: 1 VSWR at 5dB compression point.



     Specification

Frequency: 87.5-108MHz,


Frequency step value: 100KHz


Modulation mode: FM, peak deviation ± 75KHz


Frequency stability: <± 100Hz


Frequency stabilization method: PLL phase-locked loop frequency synthesis


RF output power: 0 ~1000W  ± 0.5dB


In-band residual wave: <-60dB


Higher harmonics: <-60dB


Parasitic AM: <-59dB


RF output impedance: 50Ω


RF output connector: L29 female    DIN


RF efficiency:> 75%


Analog audio input: -12dBm ~ + 8dBm


Analog audio input impedance: 10KΩ   XLR


Pre-emphasis: 0μs, 50μs, 75μs (users can set)


Frequency response: ± 0.8dB 30 ~ 15000Hz


Audio distortion: <1%


Power supply voltage range: single phase   220 ~ 260Vac


Power consumption:   <1600VA


Operating temperature range: -20 to 45 ° C


Working method: continuous work


Cooling method: forced air cooling


Cooling method: <95%


Altitude: <4500M


Dimensions: 483 x 320 x 88 mm (excluding handles and protrusions), standard rack 19 inches 2U.


Weight:  12Kg


Warranty:amplifier tube for 1 months , except man-made and lightning-strike damages. Maintenance only charge of the cost of components.
